Product Name

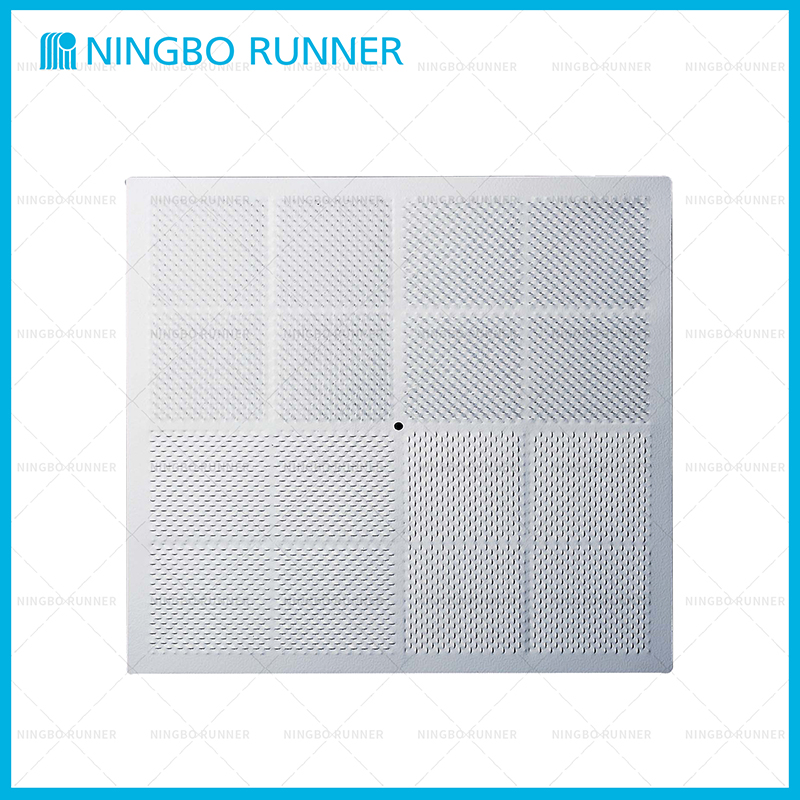

402306I T-Bar Aluminum 4-way Perforated Diffuser with Insulation

Model Number

402306I

Download Link
Parameter
Features
Download
  • FunctionFor Air Return
  • Surface TreatmentElectrical Deposition+ Powder Coating
  • ColorWhite

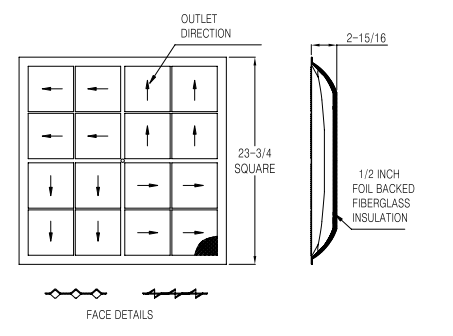

  • Design4-Way Perforated
  • MaterialSteel

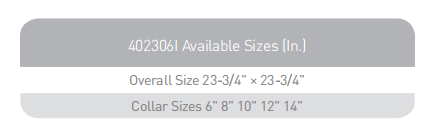

  • Product Dimension23-3/4'×23-3/4' (24'×24' openings)
  • Stamped aluminum face
  • Use for T-bar ceiling
  • Four-way, perforated faceplate
  • With insulation
  • Overall size 23-3/4'×23-3/4' (24“×24" openings)
  • Accept model #403302 snap-in collar ring (6'-14')
  • Formed metal back panel
  • White durable finish
