Product Name

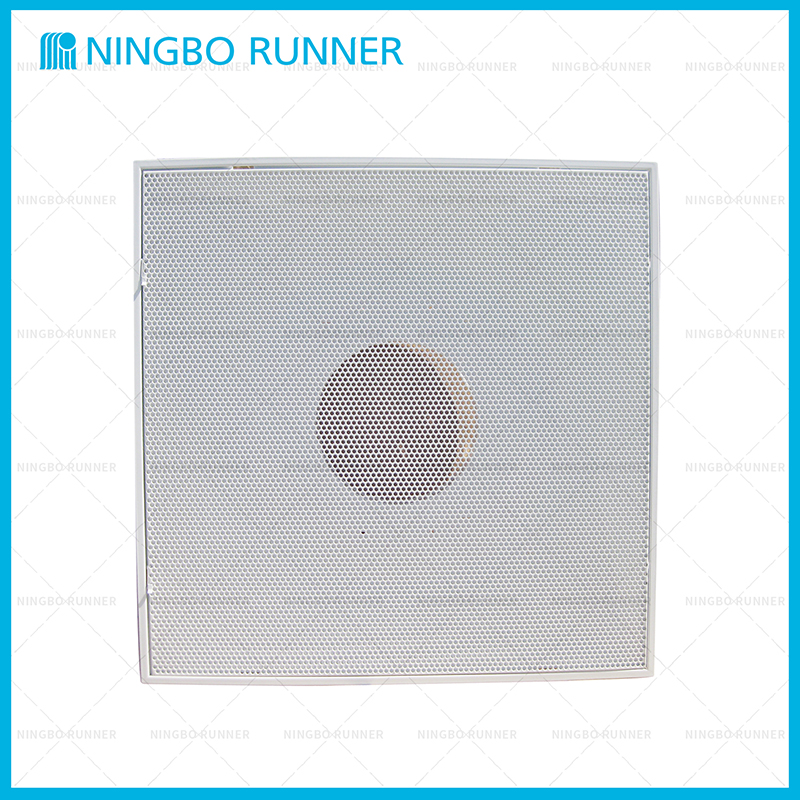

402411R6 T-Bar Steel Perforated Ruturn Filter Grille with R6 Insulation

Model Number

402411R6

Download Link
Parameter
Features
Download
  • FunctionFor Air Return
  • Surface TreatmentElectrical Deposition+ Powder Coating
  • ColorWhite
  • DesignPerforated
  • MaterialSteel
  • Product Dimension23-3/4'×23-3/4' (24“×24
  • Steel construction
  • Use for T-bar ceiling
  • Perforated faceplate

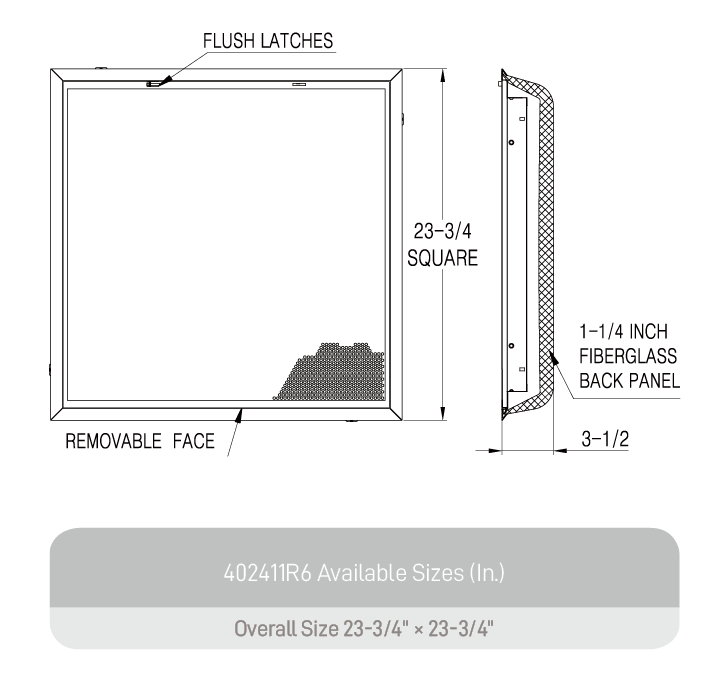

  • Overall size 23-3/4'×23-3/4' (24“×24" openings)
  • Removable hinged face for easy air flow adjustment and cleaning
  • Use nominal 1' thick filters (not included)
  • With R6 insulation
  • White durable finish
