Product Name

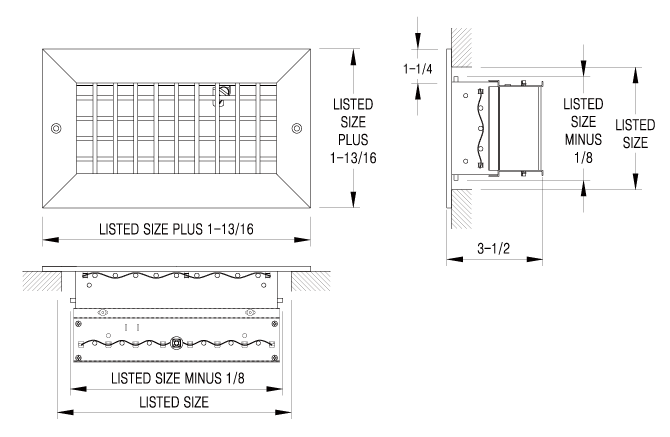

401601 Aluminum Double Deflection Vertical and Horizontal Grille with Damper

Model Number

401601

Download Link
Parameter
Features
Download
  • FunctionFor Air Supply
  • Surface TreatmentElectrical Deposition+ Powder Coating
  • ColorWhite
  • DesignVertical and Horizontal Grille
  • MaterialAluminum
  • Duct Opening SizeWidth 4-48in; Hight 4-48in
  • Extruded aluminum construction
  • Vertical front bars
  • Adjustable individual bars provide vertical and horizontal
  • deflection control
  • Opposed-blade damper for volume control
  • Available finish: White
